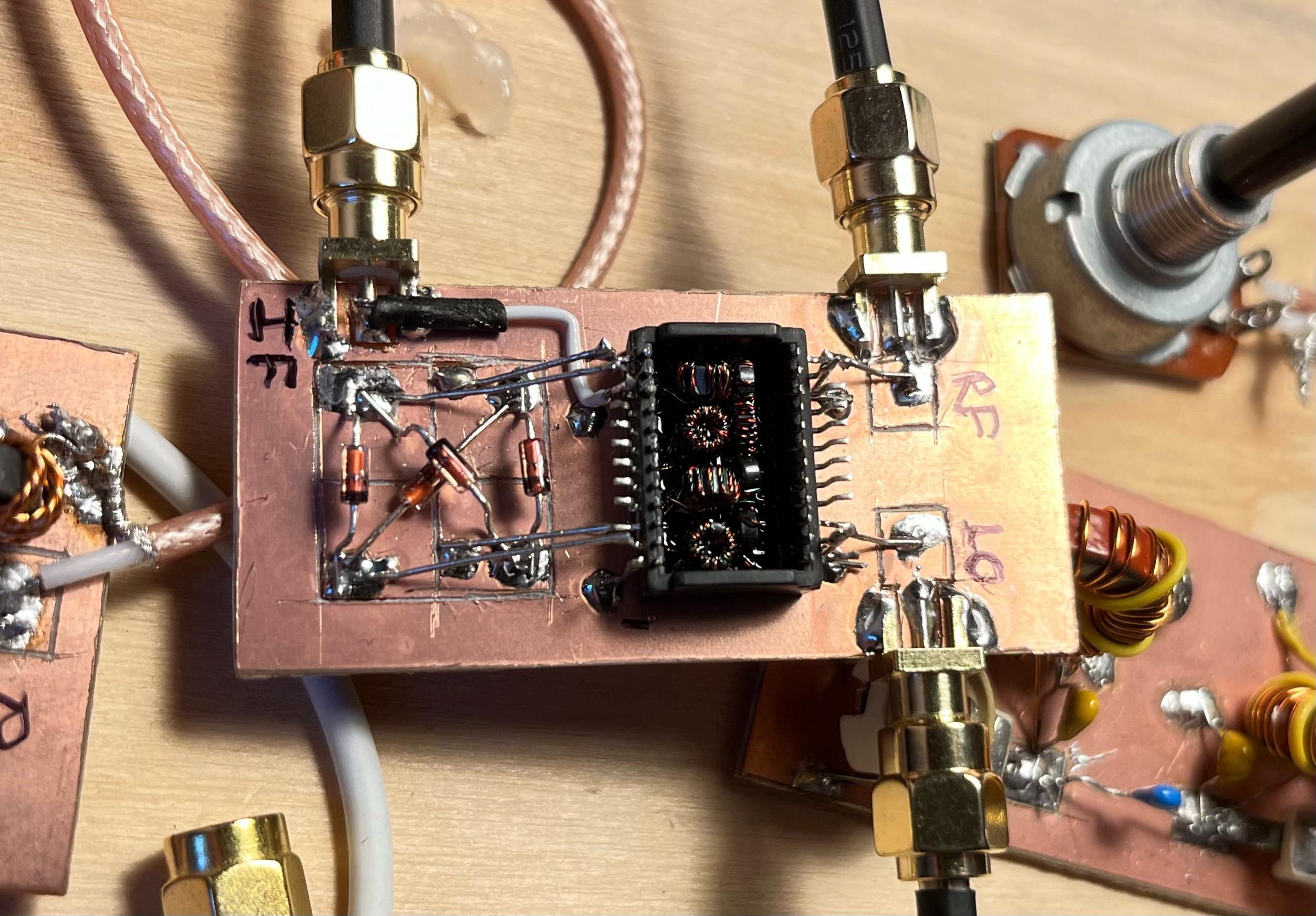

The Ethernet transformer mixer with 1N4148 diodes works great! There’s a contest on 40 today and I have heard Italy, Spain, Russia, Germany, Britain, Belgium, the Netherlands, Switzerland, and Sweden on this radio with that mixer in the last hour. My transformer package contains two sets of transformers. Here I’m using only one set. But for a superhet radio you’d have two mixers worth in a small package. #HamRadio #AmateurRadio

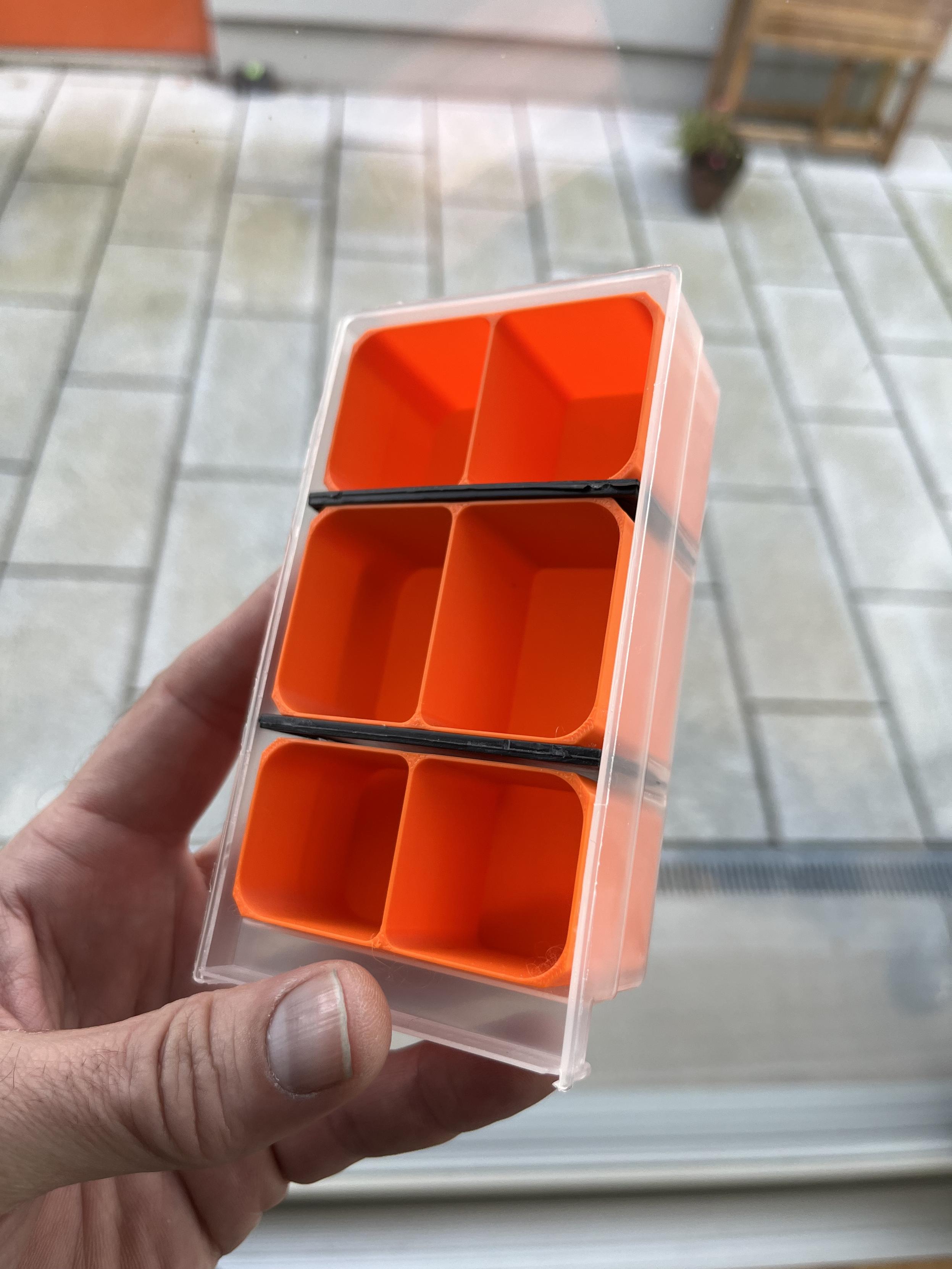

I designed and 3D printed some subdividers for my Lidl storage drawer set so that I can put a lot of small components in there. Very happy with this! #HamRadio #AmateurRadio
If you are building your own radio stuff, this looks like a pretty darn great deal on a (5 pack of) 6W-capable UHF MOSFET:
https://theelectronicgoldmine.com/products/g28282
Ship to limited countries, be warned.
I got a much better video of my direct conversion receiver listening to SSB, after band conditions improved.
Very pleased with this radio! #HamRadio #AmateurRadio
I got a good idea from PA0PHH that you can use cheap Ethernet transformers for RF mixer transformers. Man, they are cheap. I ordered 10 for €8.25 from Aliexpress. Each one has two sets, so one will do a whole mixer. Cheaper than toroids and no faffing with trifilar windings! I will give it a try when they get here. #HamRadio #AmateurRadio
I got my direct conversion receiver working! Band conditions are not amazing at the moment, but you can clearly hear the SSB I was listening to.

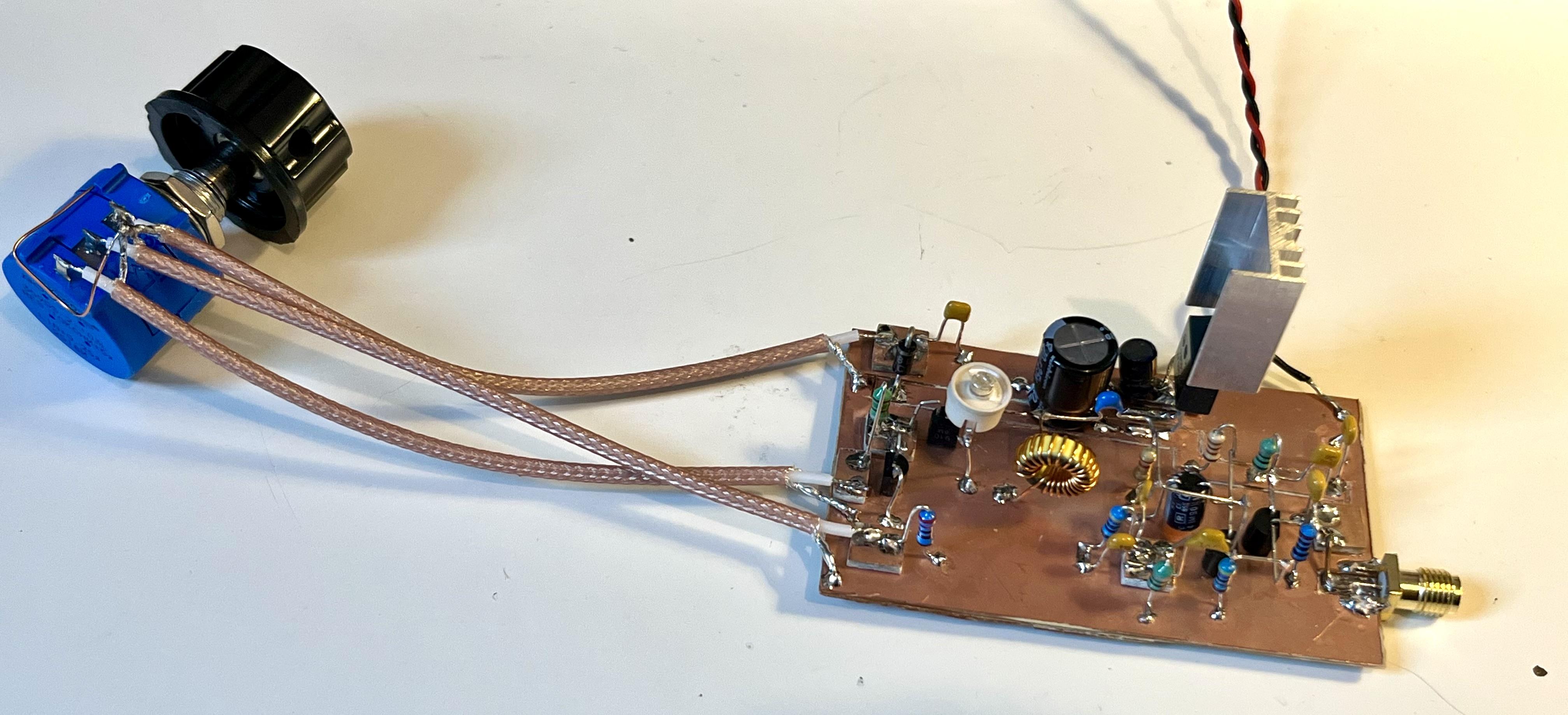

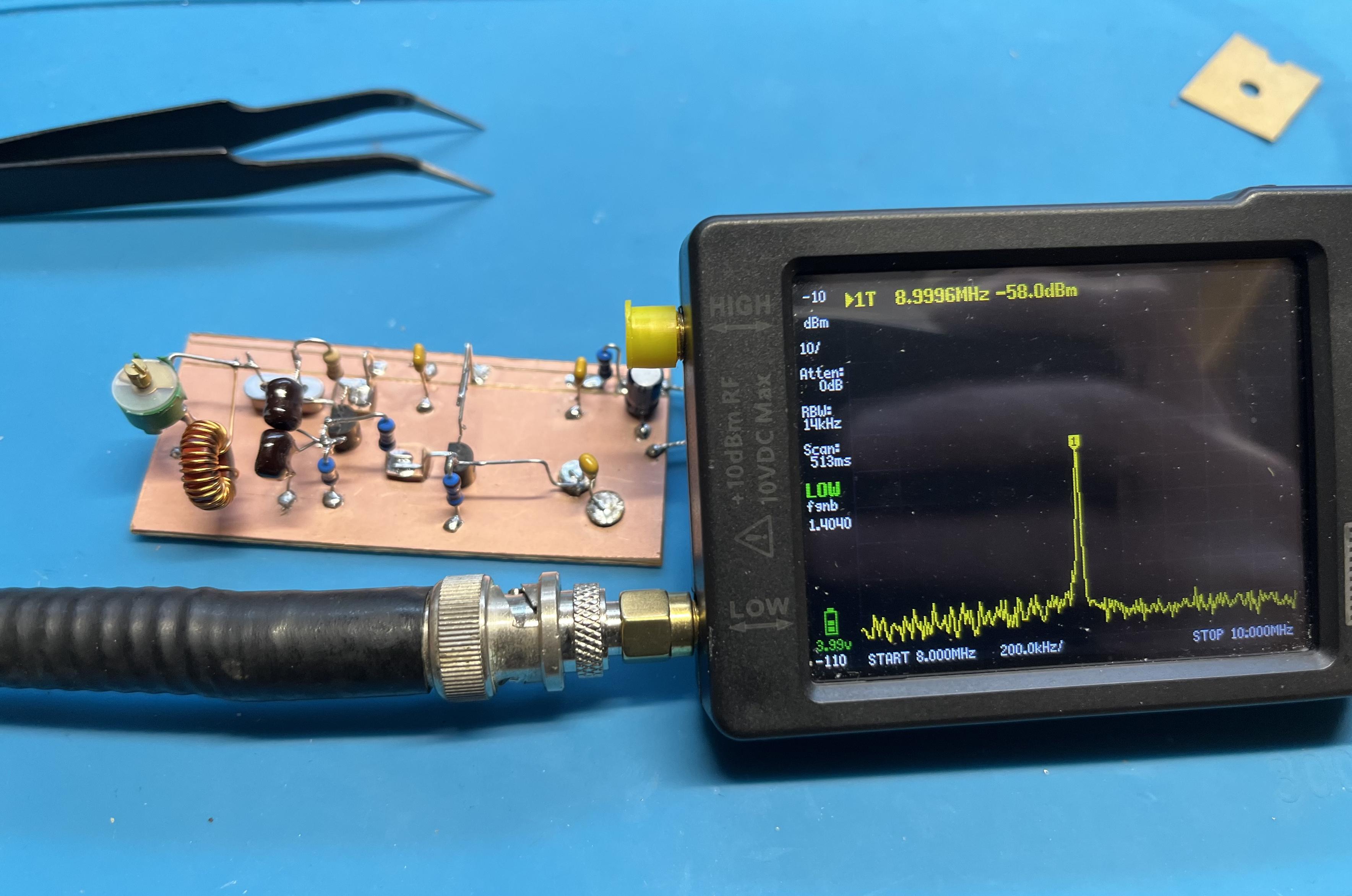

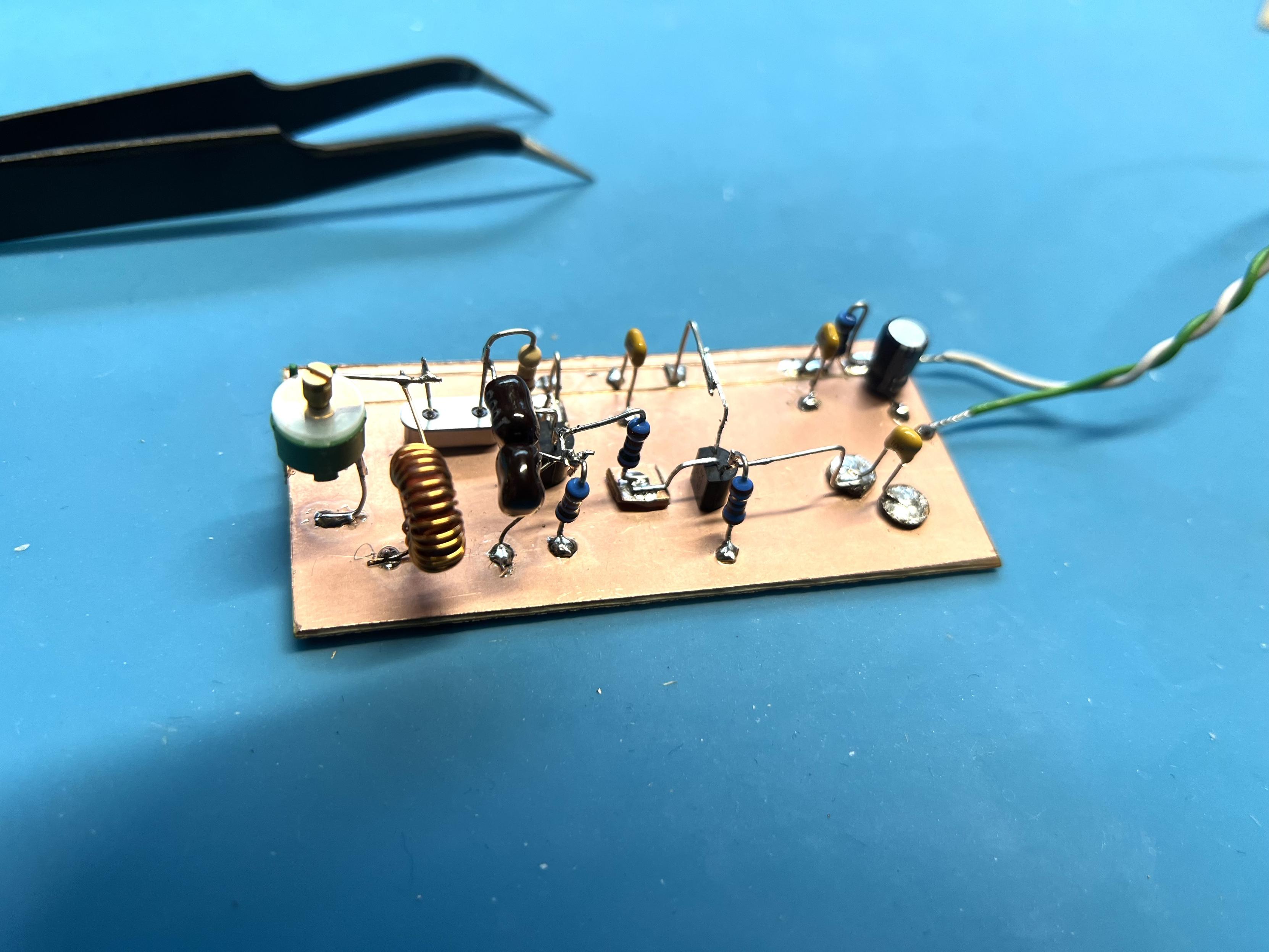

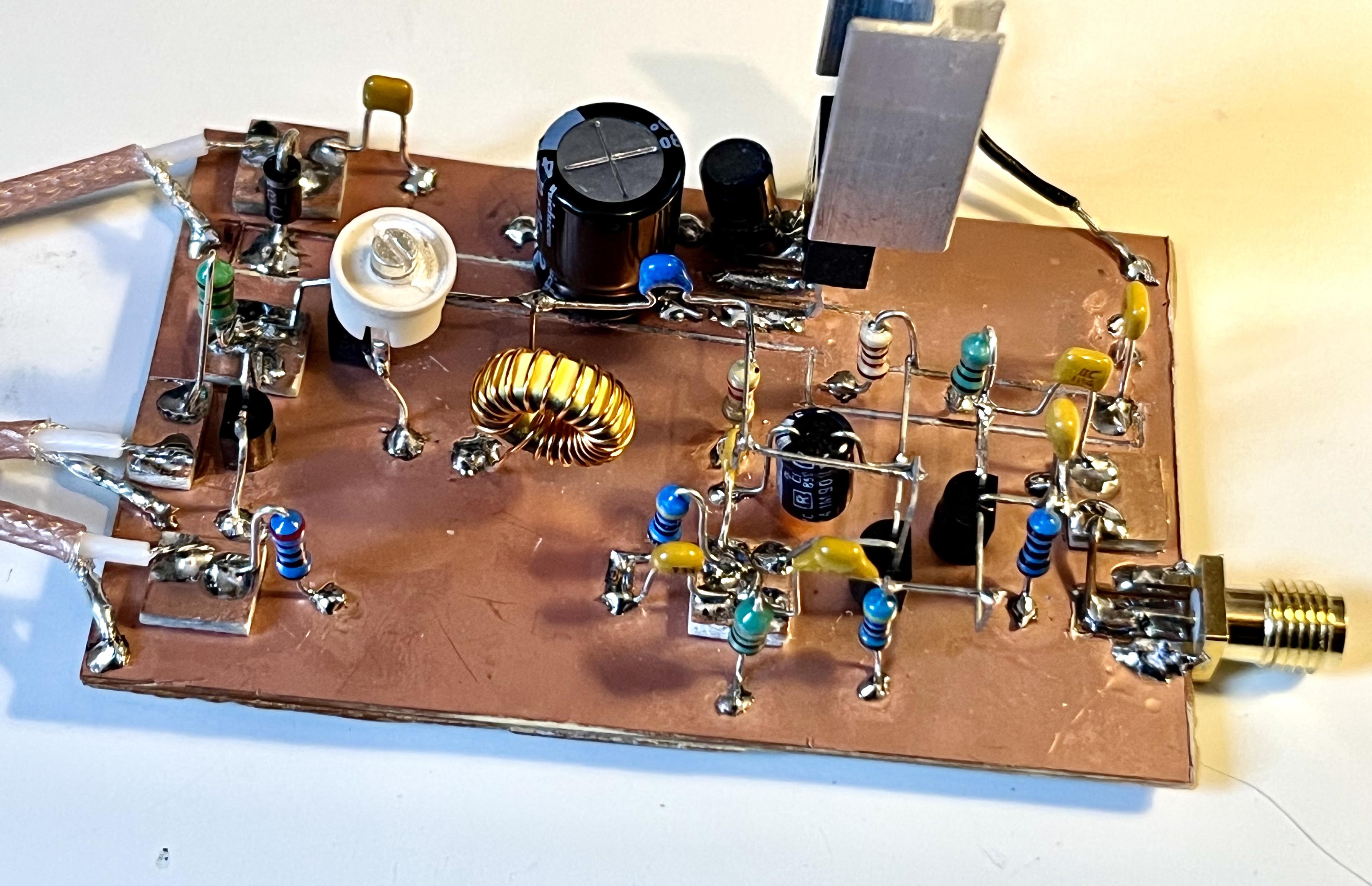

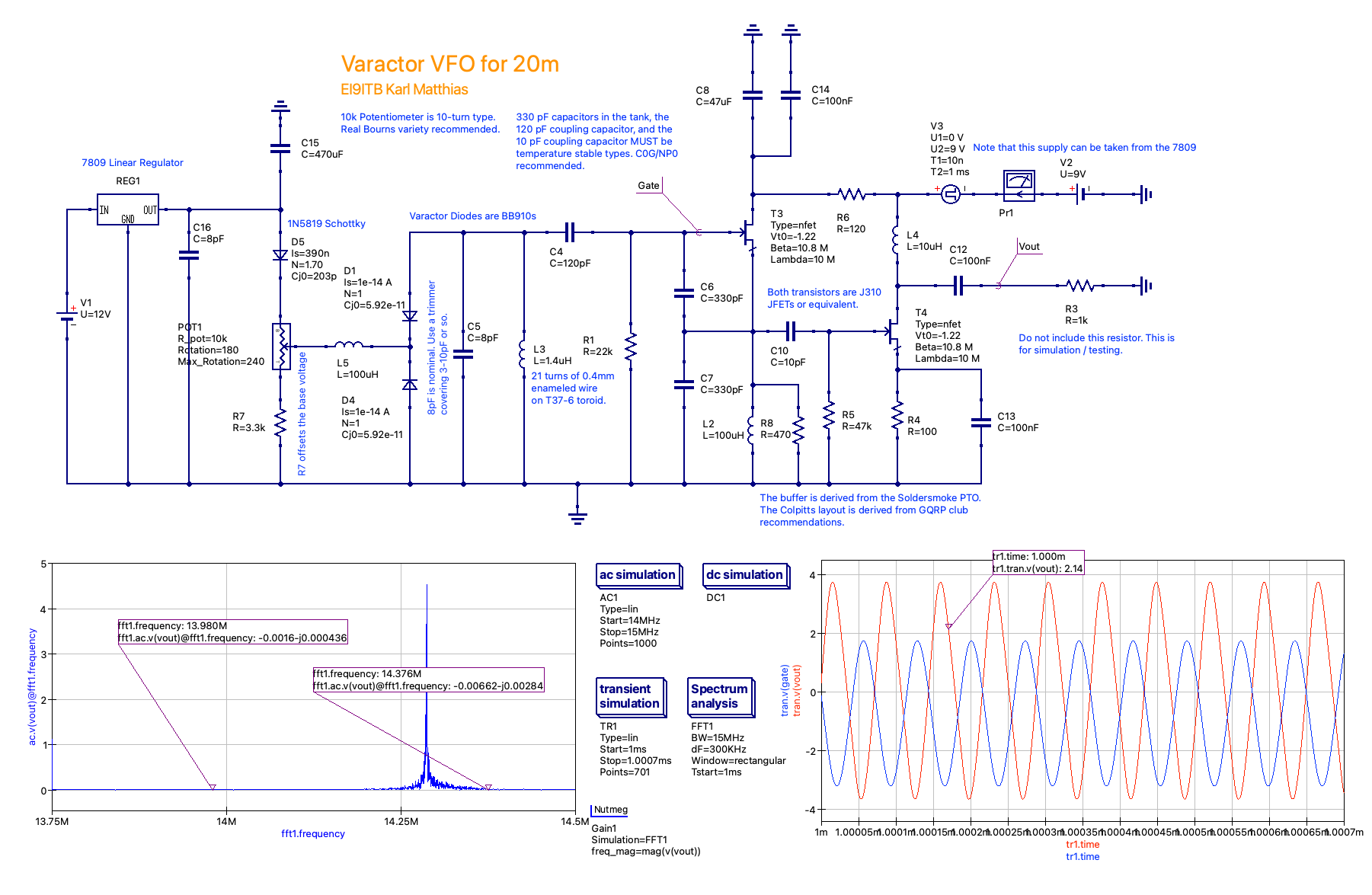

I designed and assembled a case for my Pi Pico/Si5351 VFO that makes it a lot easier and safer to move around on the bench. Good learning for my 3D printer skills. I am working on a knob design but for now using one that’s a little short. That OLED is blue/yellow and looks good. #HamRadio #AmateurRadio

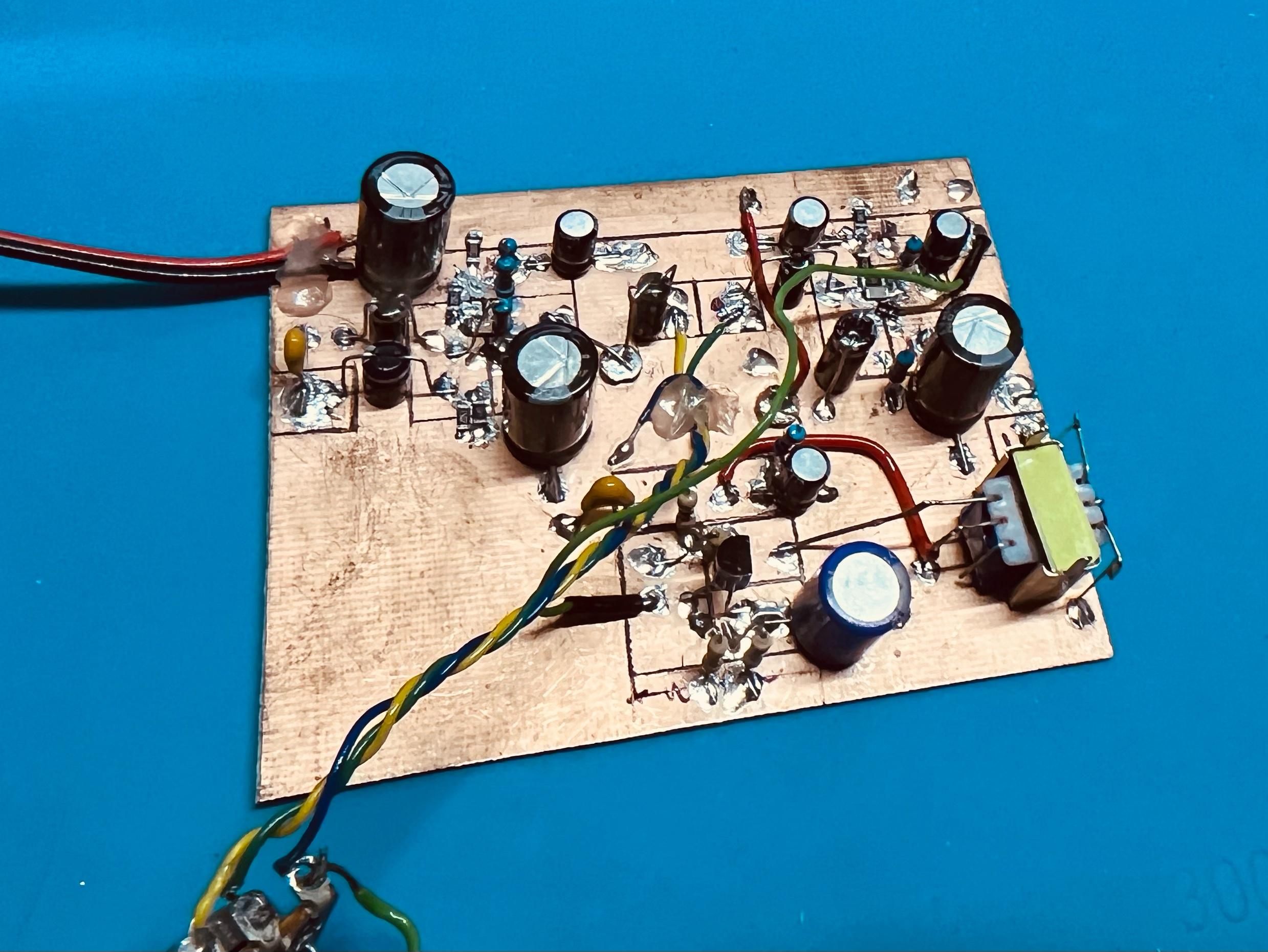

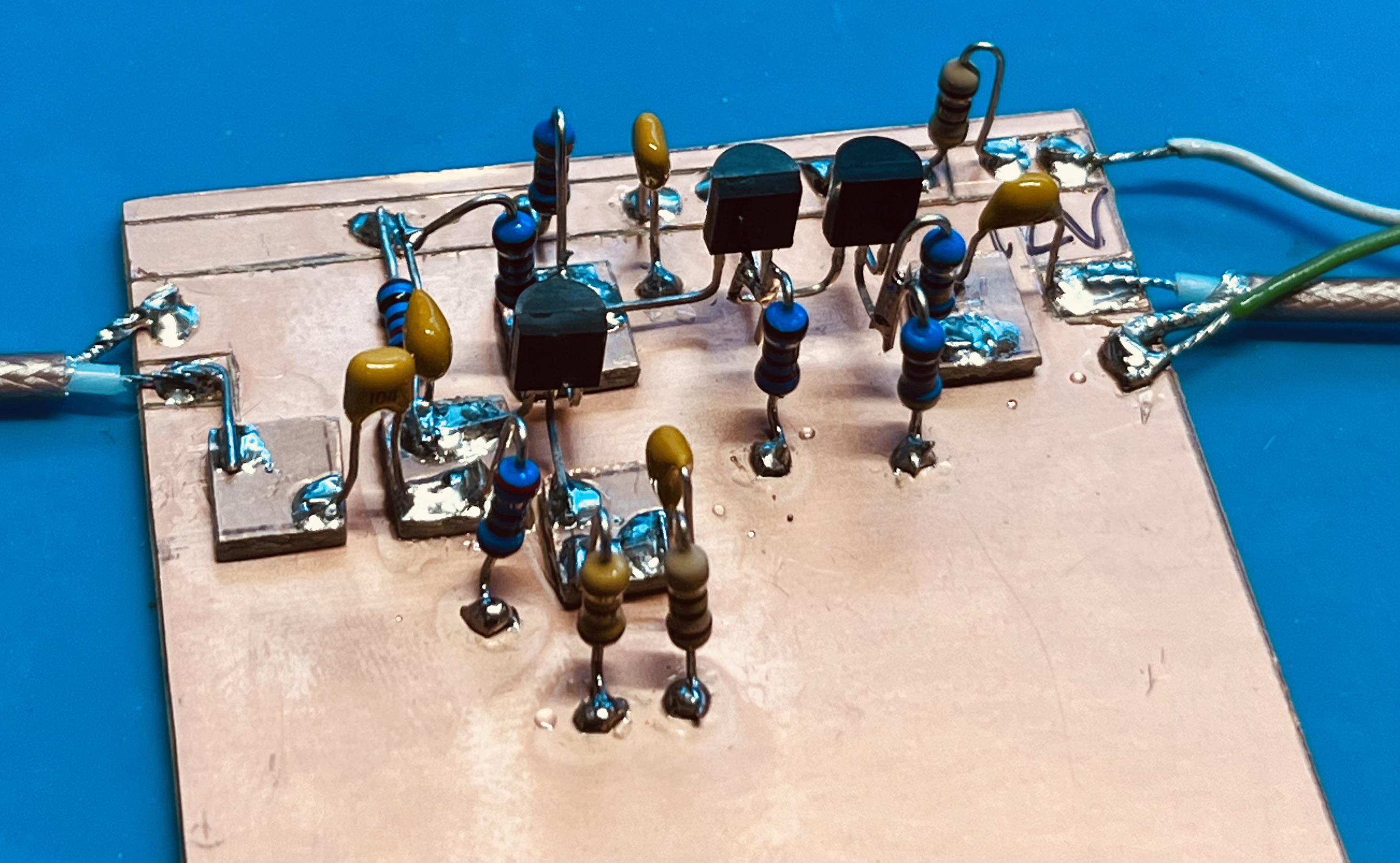

I finally assembled my Soldersmoke DC Receiver last weekend but it was not working well. I spent the week debugging. I could receive CW well but not SSB. It is very garbled. I swapped around some parts and tracked the problem to mixer build!
Today, I built a drop-in ADE-1 based mixer to test... and 💥 beautiful SSB. So I have to debug my mixer. I have a little oscillation in the audio amp, but here's a video showing how good it sounds when right #HamRadio #AmateurRadio https://youtu.be/Rvzcj72Q8lc
If you’ve seen my toots about the Soldersmoke direct conversion receiver and wondered what that was about, the Soldersmoke podcast guys put out this video this week that gives a great summary. You might like it #HamRadio #AmateurRadio https://youtu.be/5pLHBWkNxmM?si=r5xWiVFbFRDQBOge
I finished the last board of the Soldersmoke direct conversion receiver today: the 40m band pass filter. Only, I didn’t have the specified type 6 toroids. I had T68-2s, though. In the end I ended up designing my own 40m band pass filter with totally different values. Took me all afternoon, but I ended up with a very solid result! Very low loss, acceptable match.
Look at those big Soviet trimmers in there. Tested them with the NanoVNA and they are very close to spec. #AmateurRadio #HamRadio
NanoVNA screen zoomed into the pass band, showing that the 40m band is well covered.

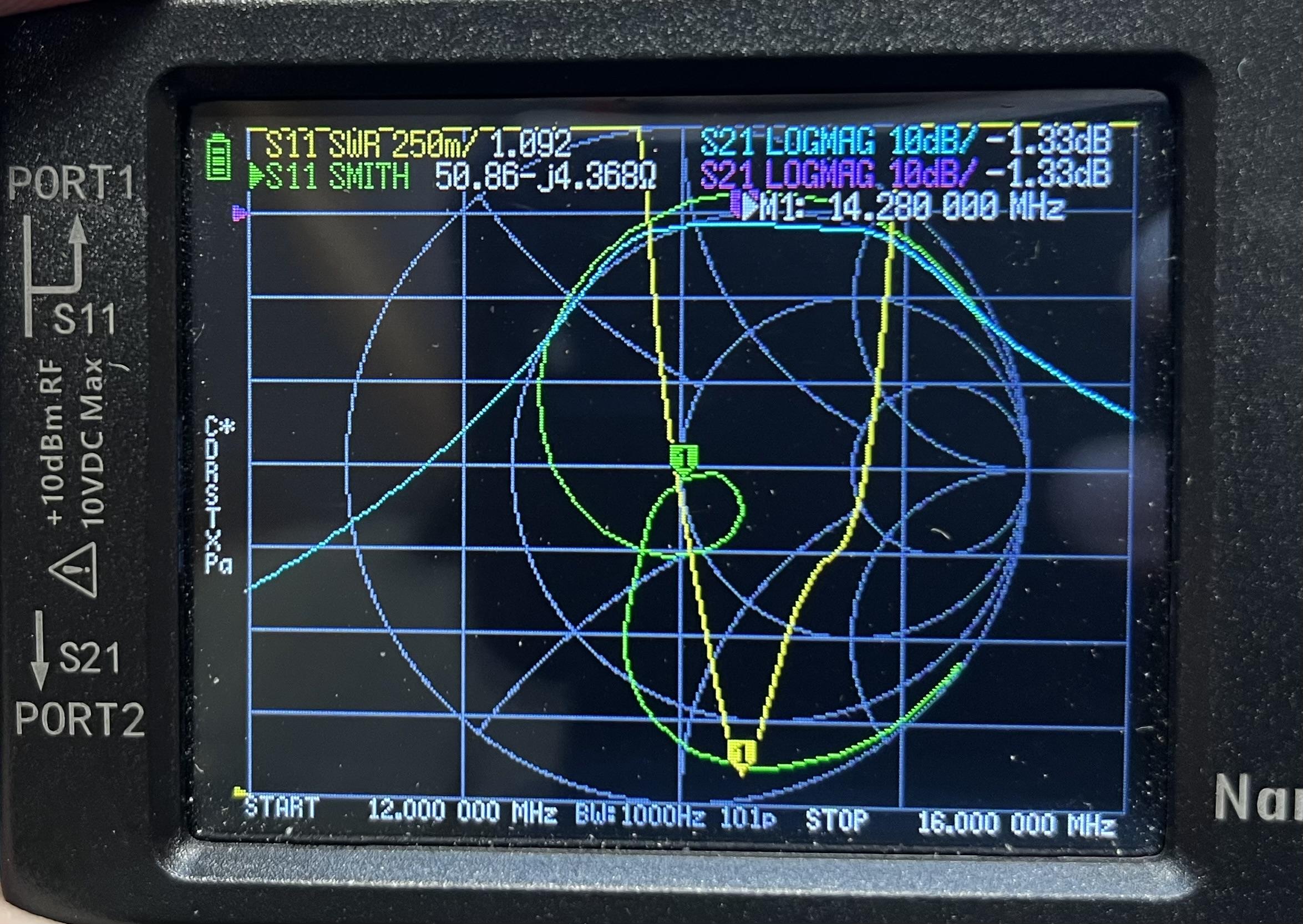

NanoVNA screen showing filter performance. Blue line shows pass band and extremely low loss. Yellow is SWR and reasonable. Green shows Smith chart performance.
40m band pass filter on copper clad board, using T68-2 toroids and Soviet trimmer capacitors.
