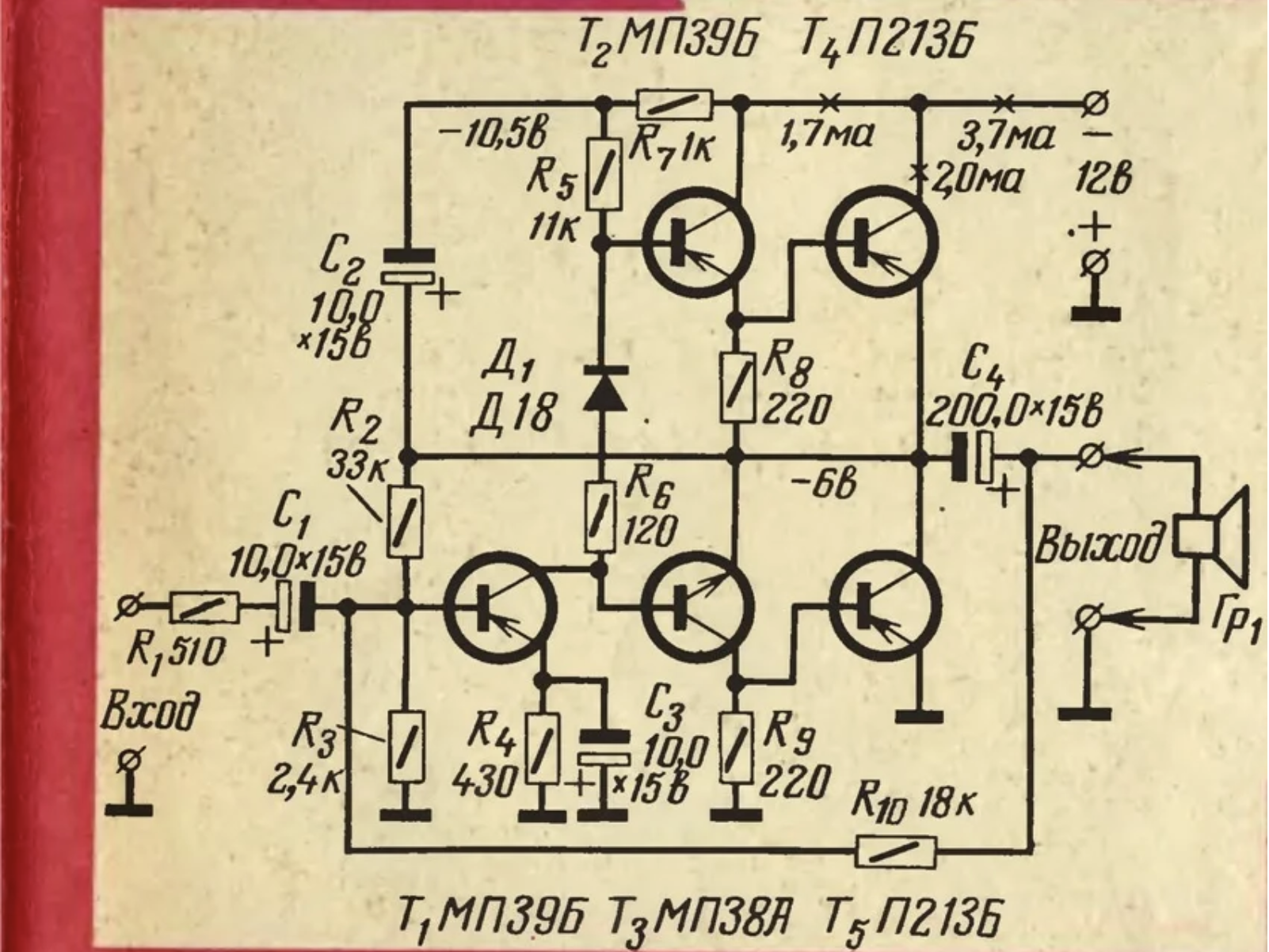

I鈥檝e got some distortion and hum to clean up when I build this for real, but my first test circuit of two germanium PNP transistor amplifier works! This is an MP39 into a beefy P214G. I based it on a circuit from MIT but then had to do quite a lot of fiddling because I have MP39s and not the two different ones they used. #Electronics #diy_electronics
Discussion
Loading...
BTW, ignore that MD8002A on the right. It鈥檚 just stuck into the board from a previous project.
@relistan 袦袩39/袦袩42 - those bring some nice memories from my childhood 馃檪 I believe you were missing the latter
